JCS MODEL 420-C
The JCS Industries Model 420-Cylinder Mounted Regulator is designed for years of safe and reliable service.
Incorporated into the robust design and machined front and back bodies, internal (Non-latching) switching mechanism, internal pressure relief vent and a non-metallic inlet valve assembly. The Model 420-C Vacuum Regulator can be either direct ton cylinder mounted or installed on multiple cylinder pressure headers.
The JCS Model 420-C operates as a pressure reducing valve to transfer gas under pressure to gas under vacuum within the chemical feed system.
Installed between the cylinder/container of the chosen gas and the Chemical Feeder Model 4200, the Model 420 will switch from one cylinder/container to the next one in line as soon as the gas in the first cylinder is depleted. An internal switchover valve is automatically initialized in the event of gas supply failure; the reduction of the vacuum will isolate the regulator diaphragm cavity from pressurized pipe work.
JCS MODEL 420-T TON MOUNTED VACUUM REGULATOR
The JCS Industries Model 420-T Ton Mounted Vacuum Regulator is designed for years of safe and reliable service.
Incorporated into the robust design are machined front and back bodies, internal (Non-latching) switching mechanism, internal pressure relief vent and a non-metallic inlet valve assembly. The Model 420-T can be either direct ton cylinder mounted or installed on multiple cylinder pressure headers.
The JCS Model 420-T operates as a pressure reducing valve to transfer gas under pressure to gas under vacuum within the chemical feed system.
Installed between the ton container of the chosen gas and the Chemical Feeder Model 4200, the Model 420-T will switch from one ton container to the next one in line as soon as the gas in the first ton container is depleted. An internal switchover valve is automatically initialized in the event of gas supply failure; the reduction of the vacuum will isolate the regulator diaphragm cavity from pressurized pipe work.
JCS MODEL 420-INJ INJECTOR
The JCS Industries Model 420-INJ Chemical Injector is designed to easily and safely deliver chemical into the water supply using an existing water line.
The Model 420-INJ Chemical Injector operates using vacuum by utilizing the venturi effect, which is a byproduct of water flow though the system. The injector will only function when there is sufficient water pressure in the unit and will only function when the system is operating.

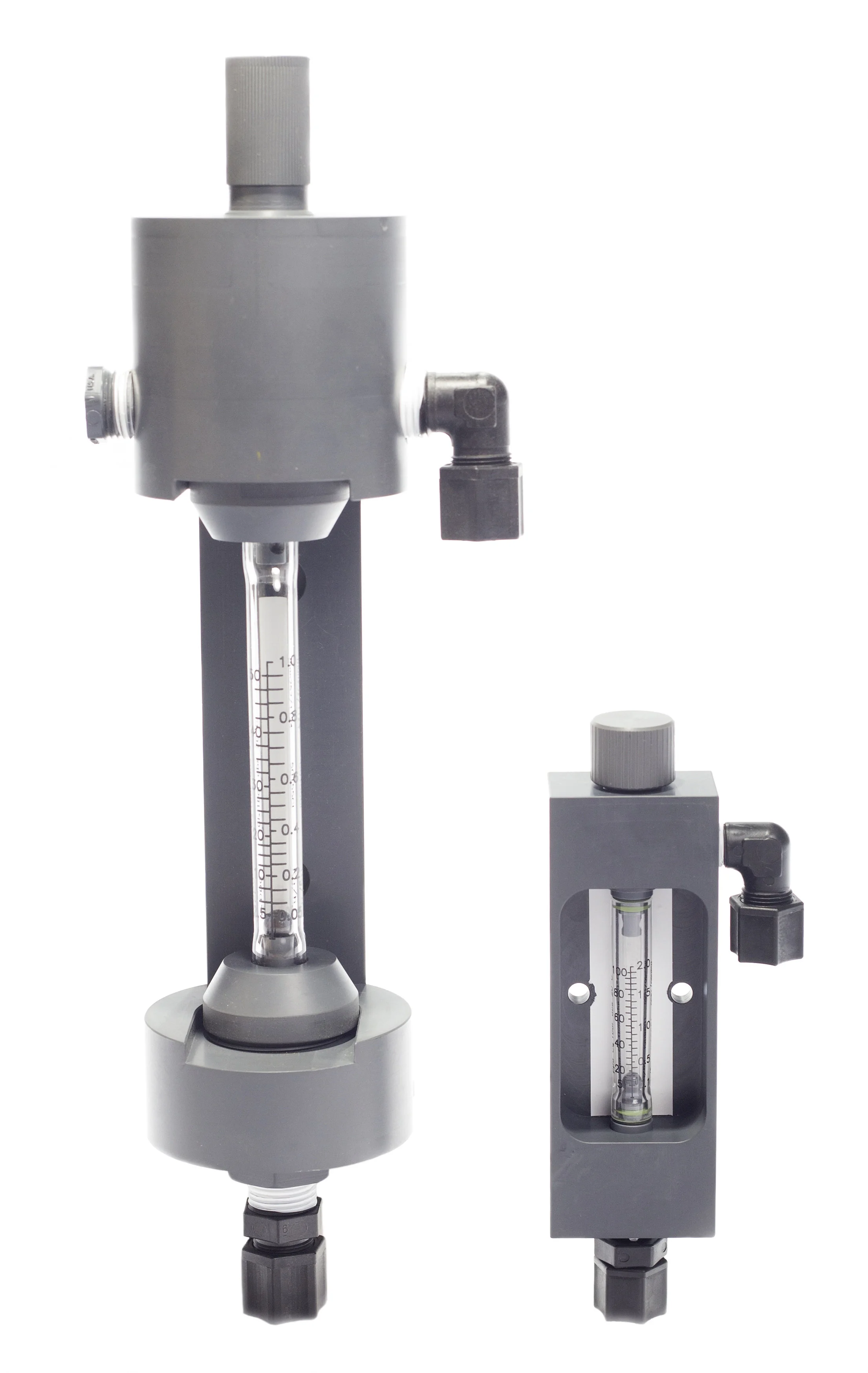

JCS MODEL 420-RMT REMOTE METER PANEL
The JCS Industries Model 420 Remote/Mini-Remote Meter Panel is designed to safely deliver and meter gaseous chemical from the vacuum regulator to the injector. Both the remote meter and the mini-remote meter assemblies are designed to precisely deliver chemical over months at a time without service.
JCS MODEL 4120 LIQUID VACUUM SWITCHOVER
The JCS Industries Model 4120 Liquid Vacuum Swicthover is a robust device that has been designed to aid in applications where impurities or fouling materials might cause a feed-water or primary vacuum source injector to clog or become inefficient. In such a case, the model 4120 automatically allows for a second, backup injector to take over the chemical feed process. The Model 4120 will, as soon as reduced flow is detected, instantly shut down the primary vacuum source or injector and switch flow to the secondary injector or vacuum source, thus allowing uninterrupted operations.
The digital display of the Model 4120 provides the necessary alarms to switch from one vacuum source to another and, alert operations personnel that a catastrophic failure has occurred. The JCS Model 4120 can also be set up to operate in conjunction with external vacuum generating devices such as the JCS Model 4140 Chemical Induction System.
JCS MODEL 4130 CHEMICAL DILUTION SYSTEM
The JCS Model 4130 Chemical Dilution System is a robust device that has been designed to aid in applications where the feeding of dilute chemicals is required by regulations or desired for optimal feed situations. The Model 4130 dilutes the specific chemical using a calculated all vacuum batch process in which a desired concentration and volume are entered into the Model 4130 controller. The operator reviews the selected parameters and presses start. All dilution water and chemicals are controlled and precisely metered throughout the dilution process.
JCS MODEL 4140 CHEMICAL INJECTION MIXER
The JCS Industries Model 4140 Chemical Injection Mixer is a proven and reliable device that utilizes vacuum to safely and effectively induce both gaseous and aqueous chemicals into open channel water stream applications.
The low (1750) rpm mixer coupled with the durable high energy nozzle, delivers a high degree of mixing efficiency.
The robust design and high quality materials of construction wills stand up to any harsh environment application.
JCS MODEL 4150 LIQUID VACUUM POLYMER FEEDER
The JCS Model 4150 Liquid Vacuum Polymer Feeder is designed for processes that require high efficiency, accuracy and reliability for feeding of most emulsion polymers.
The system is comprised of a fixed rate vacuum injector to safely induce polymer into the dilution water stream, a control module, reversing servo motor, control v-notch and electronic flow sensor to regulate the polymer feed.
The system pulls neat polymer from its storage tank, meters and controls the desired amount and activates the polymer as it mixes in the injector nozzle. The result is a highly activated and diluted polymer solution.
With the Model 4150, there is no longer a need for high maintenance diaphragm metering pumps or proprietary mixing chambers. All mixing, activation and conveyance is performed in the solution piping.
JCS MODEL 4400 RESIDUAL CHLORINE ANALYZER
The JCS Industries Model 4400 Residual Chlorine Analyzer is an amperometric probe type analyzer that accurately measures both free and total chlorine in potable water. Its primary applications are in municipal and industrial water treatment applications. It can be used for waste water applications provided that proper filtering is installed in the sample feed line to condition the sample and to reduce suspended and dissolved solids. Digital electronics are incorporated into the controller to simplify operations. The controller provides a 32 character LCD back-lit display that permits operator configured engineering units via a simple four push button interface.

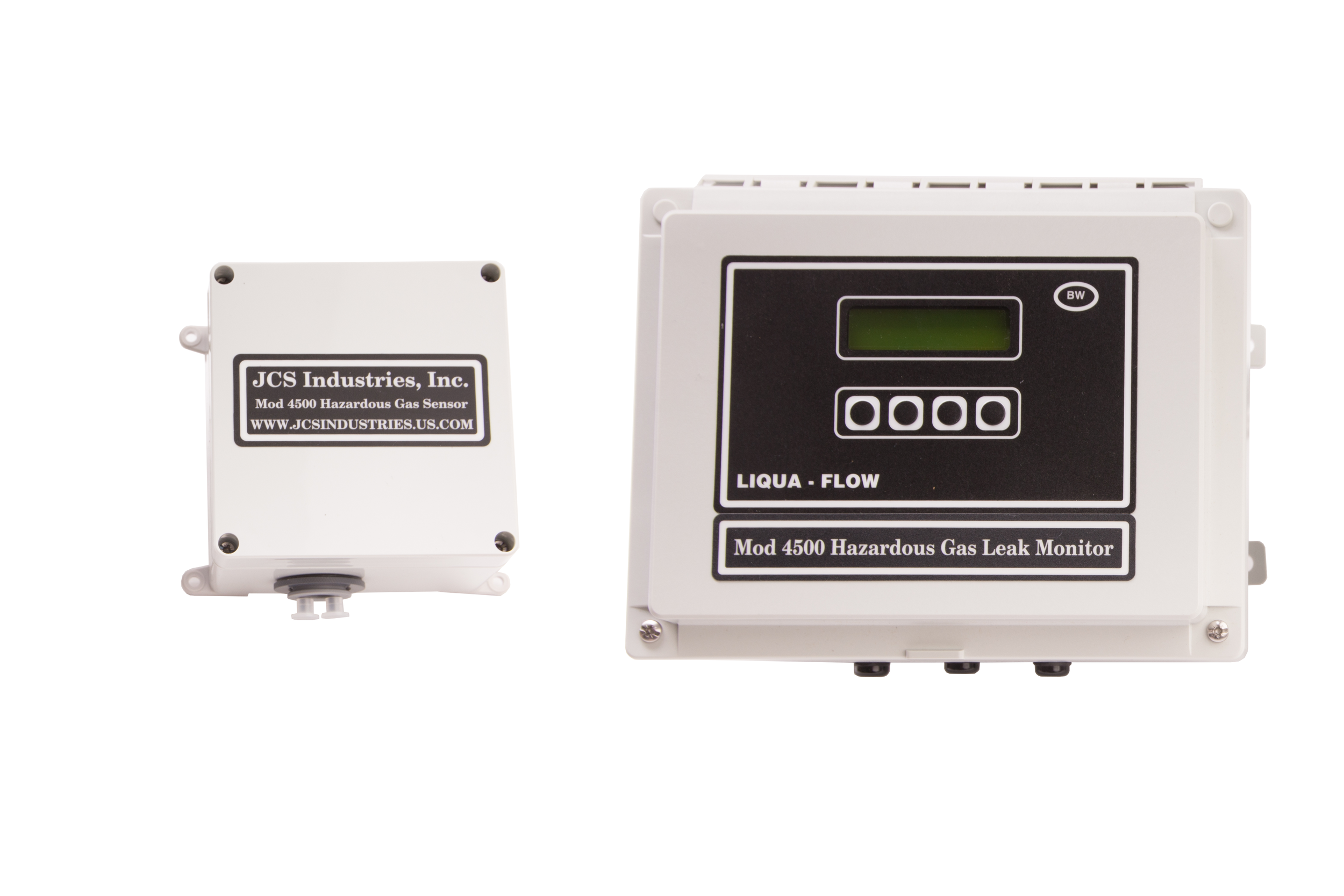

JCS MODEL 4500 GAS LEAK DETECTOR/MONITOR
The JCS Industries Model 4500 Gas Leak Detector/Monitor is a low cost, non-contact and easy to install measurement device designed for monitoring trace amounts of compressed gaseous water treatment chemicals such as, but not limited to: chlorine, sulfur dioxide and ammonia in a closed or open environment.
This unit monitors toxic suspended molecules in the atmosphere. In a leaking scenario, the Model 4500 activates an alarm when gas levels exceed the programmed maximum rates.
The monitoring sensors are compact and are designed for unobtrusive wall mounting in any convenient position. Installation, commissioning and maintenance are simplified by the modular design of the electronics.
The model 4500 can monitor up to two different gases simultaneously with each main controller.

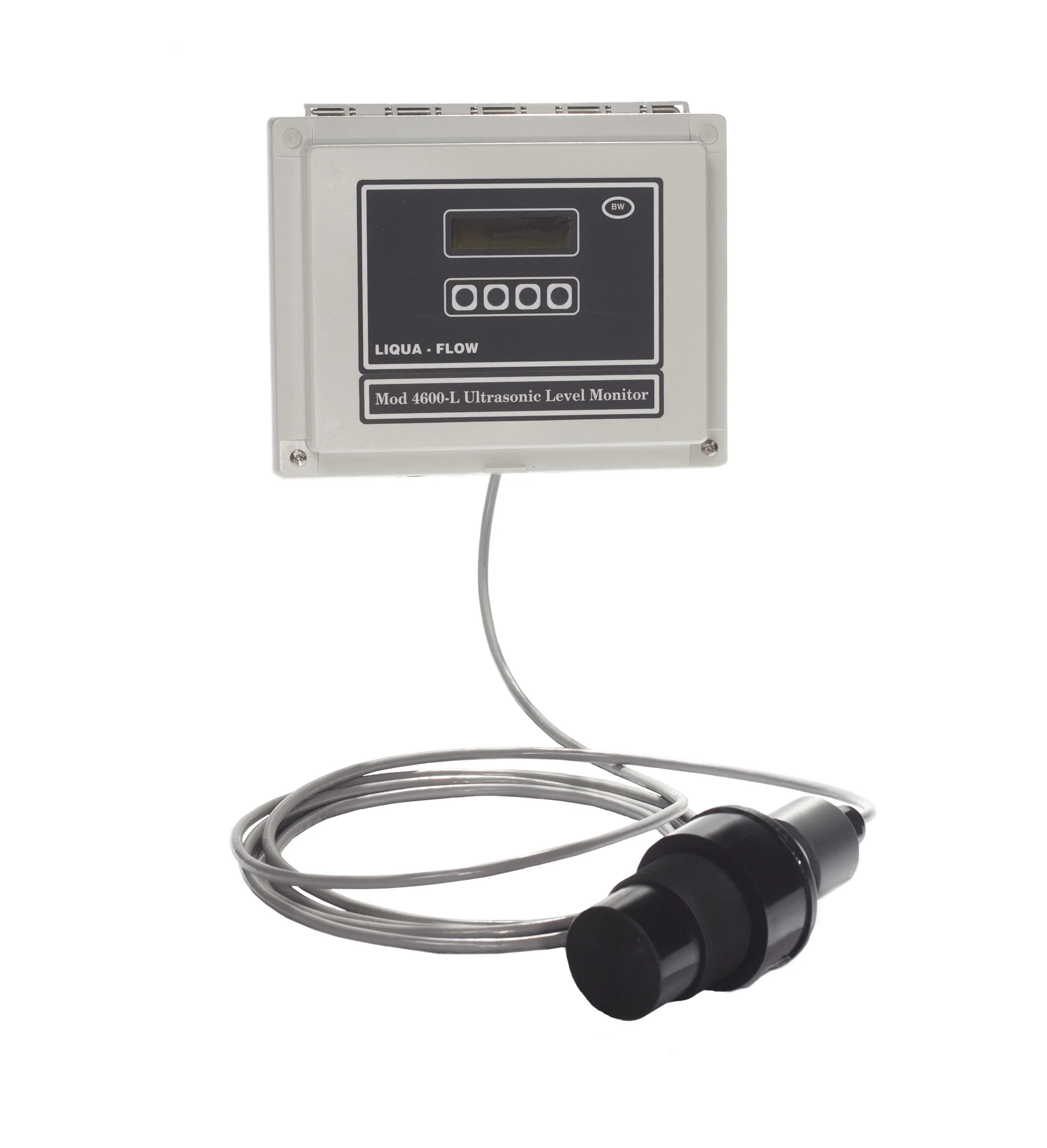

JCS MODEL 4600 ULTRASONIC LEVEL/FLOW MONITOR
The JCS Industries Model 4600 Ultrasonic Level / Flow Monitor is designed to provide accurate and reliable level and flow rate measurements in the treatment process where harsh environments exist.
The Model 4600 can easily be configured for bulk chemical storage tanks providing a continuous level or volume readout, or in an open channel environment where a calculation can be entered to the monitor to display and totalize flow.
The model 4600 has internal data logging capability to aid in determination of trend and other important data to assist the user in process diagnostics.

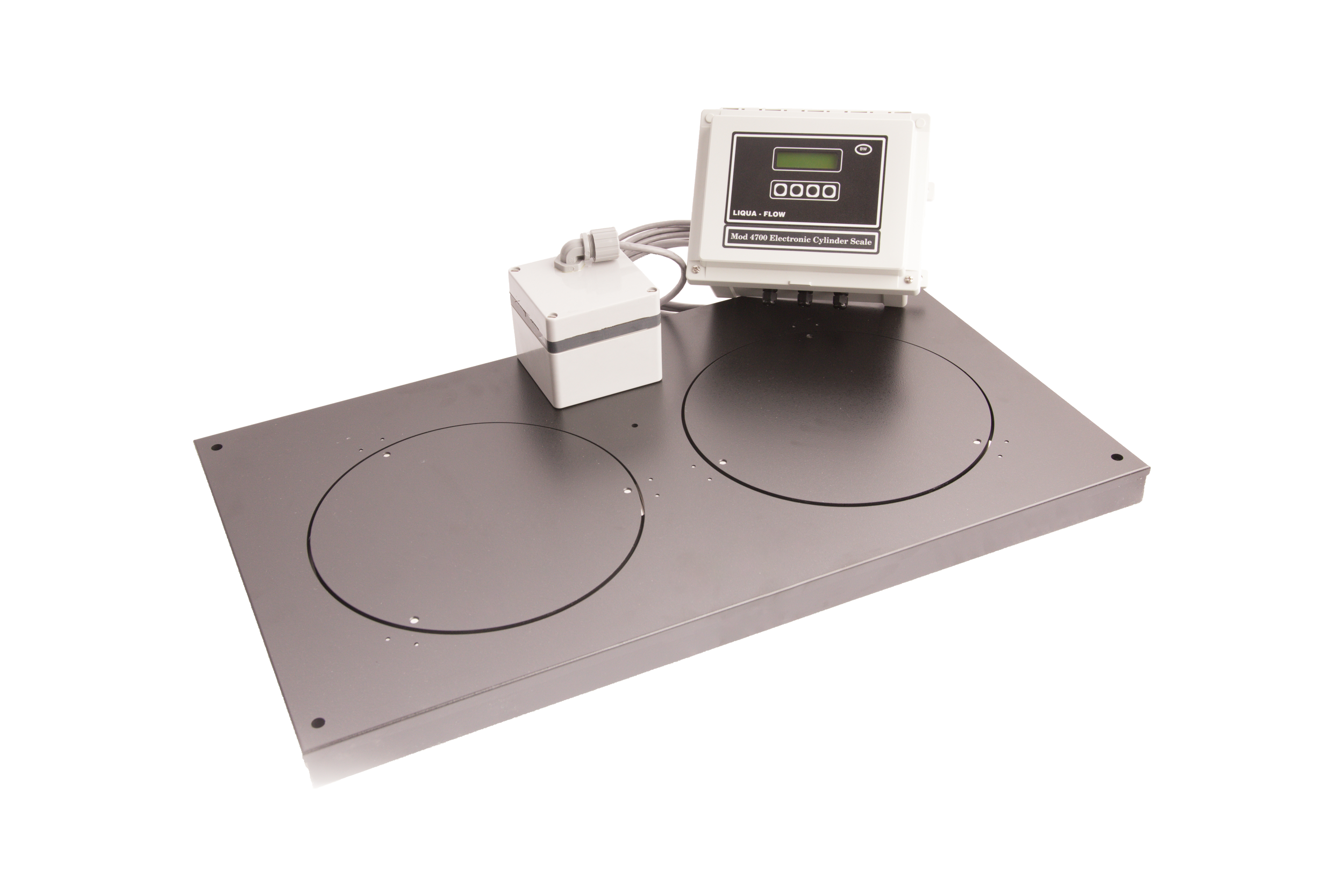

JCS MODEL 4700 ELECTRONIC CYLINDER SCALE
The JCS Industries Model 4700 Electronic Cylinder Scale is designed for years of safe continuous use for weighing 150 pound compressed gas cylinders. The low profile 1.5" 316 stainless steel heavy gauge platform allows for ease of loading while the formed, three sided curb aids in proper alignment. The Model 4700 scale also incorporates a unique hidden hinge design to allow personnel to lift and completely remove the platform for easy cleaning. The Model 4700 can be set up for single or dual cylinder operation with independent analog outputs as well as adjustable outputs for accurate and reliable operations.
JCS MODEL 4710 ELECTRONIC TON CYLINDER SCALE
The JCS Model 4710 Electronic Ton Cylinder Scale is designed for years of safe continuous use for weighing 2,000 pound compressed cylinders. The low profile 2.5" Epoxy coated tubular steel frame coupled with UHMW poly-ethylene rollers allows for positioning and rotating the container with ease. The rolled tubular design eliminates angular edge hazards.
The Model 4710 can be set up in a single or dual independent configuration capable of dedicated analog and digital outputs for monitoring and alarm conditions.
JCS MODEL 4720 ELECTRONIC PLATFORM SCALE
The JCS Model 4720 Electronic Platform Scale is designed for years of safe, continuous use for weighing 8,000 pound compressed cylinders. The low profile 3" Stainless Steel platform is protected by a textured Polane finish. The load cells, leveling feet, and hardware are all stainless steel. There are four standard sizes plus customizable versions available.
The Model 4720 can be set up in a single or dual independent configuration capable of dedicated analog and digital outputs for monitoring and alarm conditions.
